Code: WB4122PREM+ WALLSAW
Not yet reviewed.Be the first to write a review
Stock due inand avaliable for delivery from 00:00:00.
Not what you were looking for?
We have new machinery and equipment arriving weekly; feel free tocontact ustoday to discuss our latest stock!
This is our new affordable Premium heavy-duty panel cuttingwall sawfromWadkin Bursgreen.The large 4.1mtr x 2.2mtr cutting capacity allows you to convert large Jumbo sheets with ease and theSteel rollersin the base of the machine allow for easy movement of heavy panels.
The small footprint of the machine frees up valuable space in busy workshops and the mid height shelf system allows easycross cuttingof strips.
The powerful main motor and scoring saw allow for clean cutting of veneered and melamine faced boards and the automatic movement of thepanel supportprevents damage to the supporting frame.

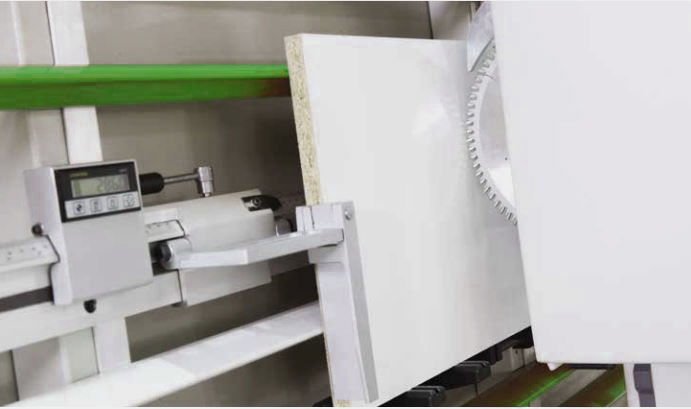

Included on this machine is the usefulDigital readoutmeasuring system for veryaccurate settingof the saw head and the pneumatic locking system allows for quick setting of the saw head saving time and effort.TRK dust extractionincluded with the machine allows dust free operation”
Backed byAdvanced Machinery Servicesrenowned service back up the machine will give you years of production.
| Code | WB4122PREM+ WALLSAW |
|---|---|
| Brand | Wadkin Bursgreen |
| Type | Panel Wall Saw |
| Condition | New |
| Compressed Air requirement | 6 bar |
| Dimensions Shipping | 5200 mm x 2600mm x 1000mm |
| Panel Net Weight | 700 KG |
| Bottom Support rollers | Metal Wheel |
| Moveable panel system | Automatic |
| Pneumatic Locking System | Included |
| TRK Dust Collection System | Included |
| Digital Display | Included |
| Full Current Load | 11 amps |
| Main Motor Rating | 3kW (4.25hp) |
| Mains Connection | 3 phase 415v / 50Hz |
| Main Blade Rotation | 5800 rpm |
| Scoring Blade Rotation | 7800 rpm |
| Cutting Thickness | 0 - 60 mm |
| Cutting Height | 2200 mm |
| Cutting Length | 4100 mm |
| Main Blade Size | Ø 250 x 30 x 3.2 mm - Z80 tooth |
| Scoring Blade Size | Ø 80 x 2.8 to 3,6 mm – Z20 tooth |
| Frame Size (WxHxD) | 5500 mm x 3100 mm x 1500 mm |
