Wadkin CNC Router CC2000 - X Axis Saddle Assembly

View Exploded Diagram

Drawing Ref	Part Number	Description	Price	Add to Basket
1	C104	X' Axis Screw	P.O.A	—
2	C109	Timing Belt Pulley	P.O.A	—
3	C110	Bearing Housing Drive End	P.O.A	—
4	C111	Bearing Housing Thrust Cap	P.O.A	—
5	C112	Bearing Housing Grease Retainer	P.O.A	—
6	C113	Motor Mounting Plate	P.O.A	—
7	C114	Motor Mounting Plate Key (Not shown on drawing)	P.O.A	—
8	C115	Linear Bearing Housing	P.O.A	—
9	C116	Cam Tray For X Axis	P.O.A	—
10	C118	Bearing Housing Non-Drive End	P.O.A	—
11	C119	Bearing Housing Packing Plate	P.O.A	—
12	C121	Nut Housing (32 mm Dia) Spec.	P.O.A	—
13	C122	Nut Housing Packing Plate	P.O.A	—
14	C125	X' Runway 50 X 42 X 1666	P.O.A	—
15	C131	Jacking Screw Washers	P.O.A	—
16	C133	X' Axis Dust Excluder (Not shown on drawing)	P.O.A	—
17	C55	Head Frame Jacking Screw	P.O.A	—
18	C56	Head Frame Jacking Locknut	P.O.A	—
19	C137	Saddles For 'X' Axis	P.O.A	—
20	C139	直线轴承轴X轴	P.O.A	—
21	C141	X' Axis Apron A011812	P.O.A	—
22	C143	Apron Box Left Hand	P.O.A	—
23	C144	Apron Box Right Hand	P.O.A	—
24	K7040632	BNS 519-B-Z-R-12-62-11	P.O.A	—
25	K7040637	Switch Dogs BNN 502VB 25	P.O.A	—
26	K7018633	Timing Belt 240 H 100	P.O.A	—
27	K7019079	Bush 1315 X 18 MM (Not shown on drawing)	P.O.A	—
28	K7019080	Bush 1315 X 16 MM (Not shown on drawing)	P.O.A	—
29	K7012565	Bearing ARNB 2052	P.O.A	—
30	K7012055	Bearing 6303 2RS	P.O.A	—
31	K7012308	Locknut KM4	P.O.A	—
32	K7012208	Locknut Washer MB 4	P.O.A	—
33	K7012306	Locknut KM 3 (Not shown on drawing)	P.O.A	—
34	K7012206	Locknut Washer MB 3 (Not shown on drawing)	P.O.A	—

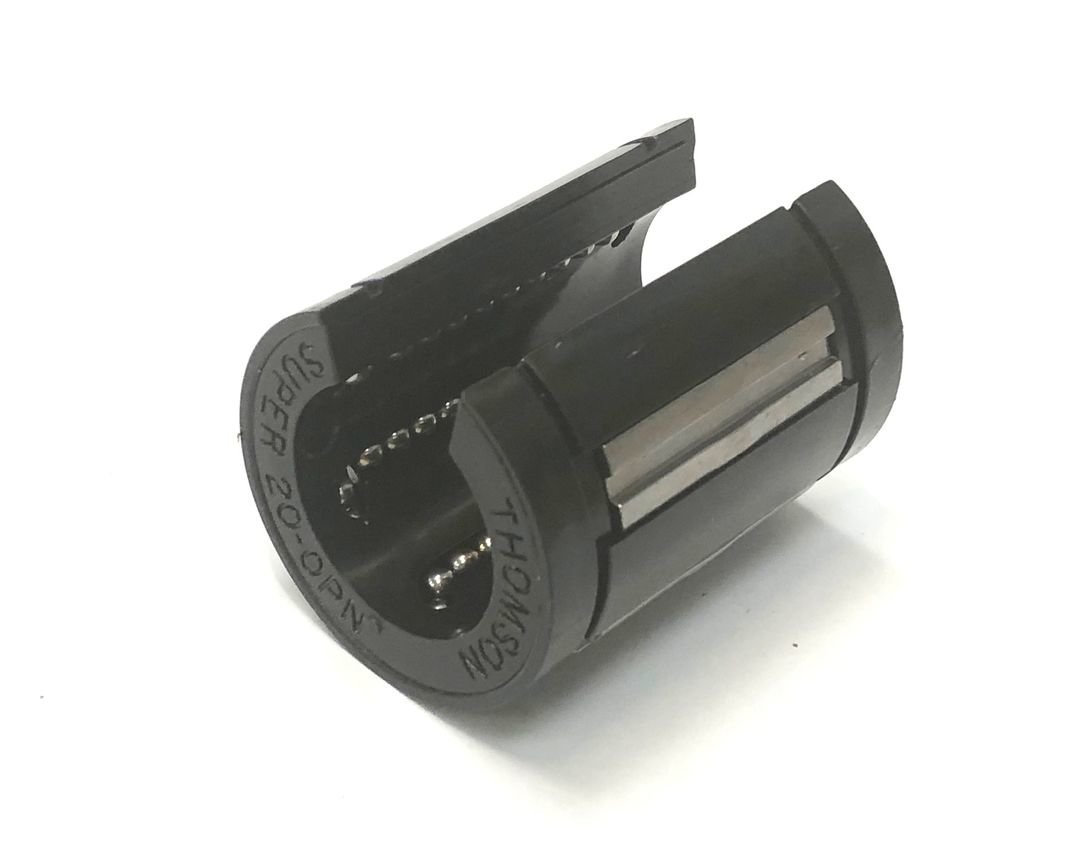

35	K7012940	THOMPSON Linear Bearing, SUPER 20 0PN Quick Delivery	Was £45.00 £25.00
36	K7013180	OPNS 1250 (Not shown on drawing)	P.O.A	—
