Timing Drum

View Exploded Diagram

Drawing Ref	Part Number	Description	Price	数量
1	WAA412	Timing Drum Backplate for Wadkin WT Double Ender	P.O.A	—
2	DP2373.	Trip Dog for Wadkin WT Double Ender	P.O.A	—
3	WAA417	Cam Disc for Wadkin WT Double Ender	P.O.A	—
4	WAA421	Wadkin的包装块wt double enter	P.O.A	—
5	WAA414	Cam Shaft Housing for Wadkin WT Double Ender	P.O.A	—
6	WAA415	Cam Shaft for Wadkin WT Double Ender	P.O.A	—
7	WAA419	Pivot Plate for Wadkin WT Double Ender	P.O.A	—
8	WAA418	Cam Disc Clamp for Wadkin WT Double Ender	P.O.A	—
9	WAA416	Cam Shaft Sleeve for Wadkin WT Double Ender	P.O.A	—
10	WAA420	Clamp Screw for Wadkin WT Double Ender	P.O.A	—
11	DP1897	Intermedate Gear Arm for Wadkin WT Double Ender	P.O.A	—
12	WAA425	Leadscrew for Wadkin WT Double Ender	P.O.A	—
13	WAA408	Leadscrew Housing for Wadkin WT Double Ender	P.O.A	—
14	WAA378	Outer Bearing Spacer for Wadkin WT Double Ender	P.O.A	—
15	WAA379	Inner Bearing Spacer for Wadkin WT Double Ender	P.O.A	—
16	WAA409	Pivot Pin for Wadkin WT Double Ender	P.O.A	—
17	DP753	Wadkin的顶板WT双端剂	P.O.A	—
18	WAA407	Key 12mm x 8mm x 155mm Long for Wadkin WT Double Ender	P.O.A	—
19	WAA423	Drive Shaft for Wadkin WT Double Ender	P.O.A	—
20	WAA513	Support for Timing Drum for Wadkin WT Double Ender	P.O.A	—
21	K0529128	Plain Dowel Dia 6mm x 12mm Long for Wadkin WT Double Ender	P.O.A	—
22	K3009234	Wadkin的外部圈子WT双端剂	P.O.A	—
23	K0525187	Hex,Skt.Capscrew M8 x 20mm long	£0.95
24	WAA422	Drive Adaptor Plate for Wadkin WT Double Ender	P.O.A	—
25	K0529142	Plain Dowel Dia 8mm x 16mm Long for Wadkin WT Double Ender	P.O.A	—
27	WAA424	Spacer for Wadkin WT Double Ender	P.O.A	—
28	K0523143	Key 6 x 6 x 40mm long	P.O.A	—
29	K0525506	Hexagon Head Setscrew M6 x 35mm Long for Wadkin WT Double Ender	P.O.A	—
30	K0527101	在Wadkin机器上的六角形螺母M6	£0.20
31	K0525171	Hexagon Socket Capscrew M6 x 45mm Long for Wadkin WT Double Ender	P.O.A	—
32	K0527109	Locknut M8	£0.25
33	K0528112	Large Plain washer M8 for Wadkin WT Double Ender	P.O.A	—
34	K3053137	Thumb Nut for Wadkin WT Double Ender	£19.50
36	K0525529	Hex.Head Screw M10 x 20mm long	P.O.A	—
37	K0528113	M10 Large Plain Washer for Wadkin XE	£0.25
38	K0526117	M6 x 20mm Long Hexagon Head Grubscrew for Wadkin XE	£0.35
41	K0526101	Hex.Skt.Grubscrew M5 x 5mm long	P.O.A	—
42	K3025260	18T齿轮适合Wadkin WT双端剂所需的速度	P.O.A	—
	K3025261	24T Gear to Suit Required Speed for Wadkin WT Double Ender	P.O.A	—
	K3025262	30T Gear to Suit Required Speed for Wadkin WT Double Ender	P.O.A	—
	K3025263	36T Gear to Suit Required Speed for Wadkin WT Double Ender	P.O.A	—
	K3025264	48T Gear to Suit Required Speed for Wadkin WT Double Ender	P.O.A	—
	K3025265	54T Gear to Suit Required Speed for Wadkin WT Double Ender	P.O.A	—
44	K3025259	Tufnol Gear for Wadkin WT Double Ender	P.O.A	—

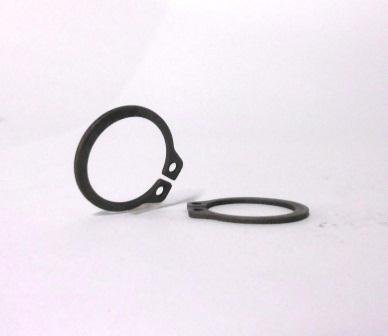

45	K3009276	External Circlip 20mm	P.O.A	—
47	K0527103	Hex.Nut M10	£0.25
48	K3009825	Internal Circlip Dia 37mm for Wadkin WT Double Ender	P.O.A	—
49	K0613110	用于Wadkin的滚针轴承WT双端剂	P.O.A	—
50	K0614223	Needle Roller/Angular Contact Bearing for Wadkin WT Double Ender	P.O.A	—
51	K0528114	M12 Large Washer for Wadkin XE	£0.10
52	K0527104	Hexagon nut M12 on Wadkin machines	£0.75
54	K0528107	Plain Washer M20 for Wadkin WT Double Ender	£0.50
56	K0525166	M6 x 20mm Long Hexagon Socket Capscrew for Wadkin GC300	P.O.A	—
57	K3009237	用于Wadkin的外部圆形Dia 40mm wtw dt double enter	P.O.A	—
58	K0525193	Hexagon Socket Capscrew M8 x 50mm Long for Wadkin WT Double Ender	£0.95
59	K0525168	M6 x 30mm Hex Socket Screw	£0.50
60	K1206123	12 Way Limit Switch for Wadkin WT Double Ender	P.O.A	—
	K1206139	6路限位开关Wadkin WT窦ble Ender	P.O.A	—
