K23 K25 Side Head Belt Arrangement

Where available, we have listed below the most common spare parts for your machine to order directly from this page.

If the part you require is not listed below, please note the part from the illustration or open a copy of the Wadkin K23/K25 Manual, note the page and reference number of the part your require, and complete the form below.

Also please indicated the Machine Test And Serial Number where ever possible.

Regards the "Wadkin Bursgreen Spares Team"

Drawing Ref Part Number Description Price Add to Basket
1 XL2409 Near Side Head Carraige For Wadkin K23 K25 P.O.A
2 K3005535 Flat Belt For Wadkin K23/K25 Moulder Combined Side Heads (50Hz) - 2030 x 65 £132.50
2 K3005534 Flat Belt For Wadkin K23/K25 Moulder Combined Side Heads (60Hz) - 1977 x 65 £121.00
3 XL2316 Belt Tensioner Idle Roller £156.00
Idle roller support shaft on Wadkin FSP 4 GA3738 Idle roller support shaft on Wadkin FSP £131.00
Bearing 5 K0601340 Bearing £21.00
Bearing 6 K0601214 Bearing £23.00
Pivot pin for idle roller link on Wadkin FSP 7 GA3736 Pivot pin for idle roller link on Wadkin FSP £111.00
8 XL2077 Tensioner Pivot Bracket £162.50
2.3m Infeed Table For Wadkin FSP 9 GA15723 2.3m Infeed Table For Wadkin FSP P.O.A

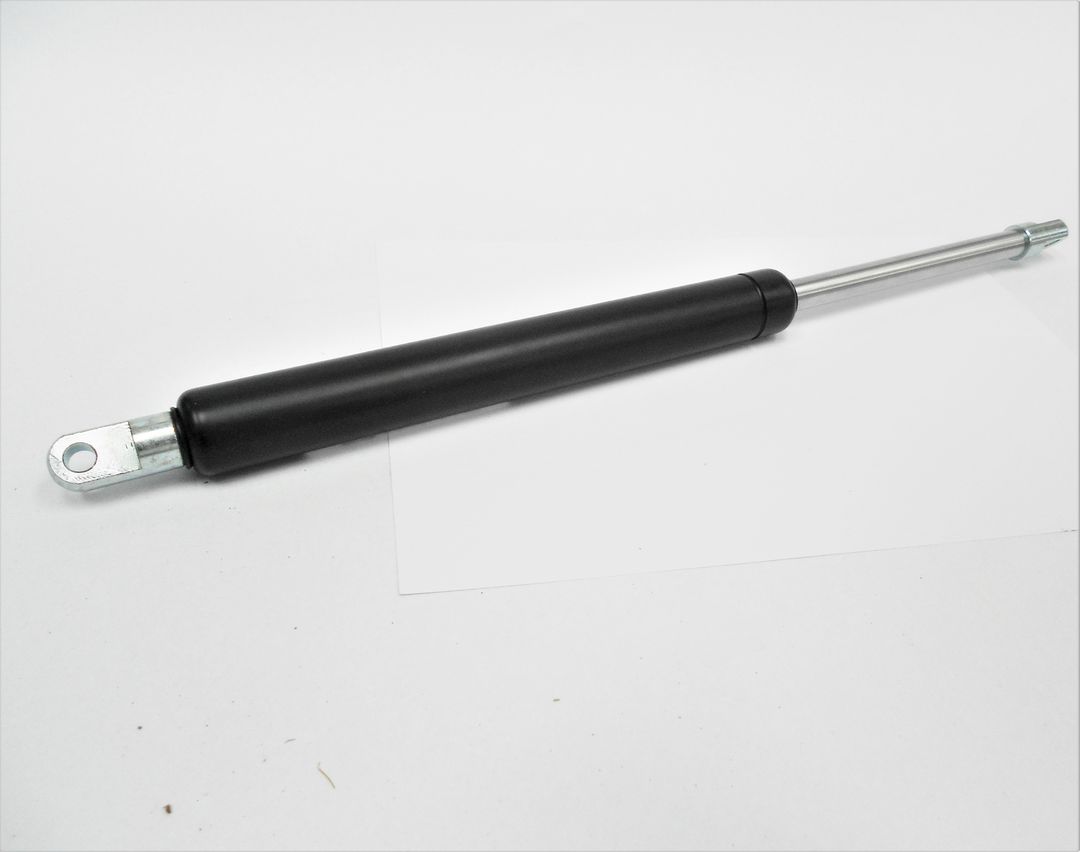

Gas Spring For Side Head Belt Tension On Wadkin K Range Moulders 10 K3029993 Gas Spring For Side Head Belt Tension On Wadkin K Range Moulders £103.50
11 GA3734 Fixing block for gas spring on Wadkin FSP £187.50
12 XL2152 Gas Spring Anchor £95.00
13 XL2345 Fence Side Head Carraige For Wadkin K23 K25 P.O.A
14 XL2543 Motor Pulley (50HZ) P.O.A
14 XL2541 Motor Pulley (60HZ) P.O.A
