HT Delta Feed Beam Assembly

View Exploded Diagram

Drawing Ref	Part Number	Description	Price	Add to Basket
遗传算法2B088	遗传算法4432	50mm Wide Polyurethane Roller (35mm Bore + Keyway) including screw - Steel Hub	£90.00
遗传算法2B089	遗传算法716	Spacer 40mm long For Wadkin Moulder	£50.00
遗传算法2B091	遗传算法718	Spacer 10mm long For Wadkin Moulder	£33.75
遗传算法2B1050	遗传算法73	Eyebolt For Wadkin Moulder	£31.00
遗传算法2B1050	遗传算法7462	Feedroll Swing For Wadkin Moulder	£525.00
遗传算法2B1050	K0527111	Hex.Locknut M12 For Wadkin Moulder	£0.25
遗传算法2B1050	K0531577	Bronze bush OD 30mm x ID 25mm on Wadkin machines	£8.75
遗传算法2B1050	K0601126	Ball Bearing	£18.00
遗传算法2B1050	K3009140	30mm Internal Circlip	£2.95
遗传算法2B1050	K3009279	55mm Internal Circlip	£4.50
遗传算法2B384	遗传算法30	Spacer for Swing For Wadkin Moulder	£58.00
GA2B397	遗传算法6791	Hexagon Connecting Rod 370mm	P.O.A	—
遗传算法2B476	遗传算法6798	Hexagon Connecting Rod 470mm (HT6/42 only)	P.O.A	—
遗传算法2B572	遗传算法6799	Hexagon Connecting Rod 355mm	P.O.A	—
遗传算法2B627	遗传算法7475	Bracket For Feedroll Swing	£634.00
遗传算法2B627	K0525212	Hex.Skt.Capscrew M10 x 40mm long	£0.95
遗传算法2B627	K0526139	Hexagon Socket Screw M10 x 20mm Long	£0.95
遗传算法2B627	K0528155	M10 Spring Washer for Wadkin MAchinery	£0.75
遗传算法2B689	K3061911S	Single Acting Feedroll Cylinder For Wadkin Moulders - Price Each	£197.00
遗传算法2B689	K3063153	Swivel Elbow 1/8" BSP/6mm	£7.75
遗传算法2B691	遗传算法6539	Bracket For Mounting Swing	£537.50
遗传算法2B691	遗传算法6540	Swing For Bedroll On Wadkin Moulders	P.O.A	—
遗传算法2B691	遗传算法6589	Pivot Shaft For Swing	£114.00
遗传算法2B691	遗传算法7781	Bedroll Shaft Assembly	£849.00
遗传算法2B691	K0523136	Parallel Key 8 x 7 x 36mm	£7.50
遗传算法2B691	K0525533	Hexagon Head Setscrew M10 x 40mm Long for Wadkin WT Double Ender	£0.50
遗传算法2B691	K0526136	Hex.Skt.Grubscrew M10 x 10mm long-cone point	£0.49
遗传算法2B691	K0527104	Hexagon nut M12 on Wadkin machines	£0.75
遗传算法2B691	K0527110	Lock nut M10 for Wadkin machine	P.O.A	—
遗传算法2B691	K3009145	External Circlip	£1.95
遗传算法2B738	遗传算法8967	Wadkin Moulder Feedroll Shaft Assembly:-comprising items 5.13.14.20	£269.00
遗传算法2B738	GEM3326	'C' Washer For Wadkin Moulder	£23.00
遗传算法2B738	GEM3333	Feed Roller Flange For Wadkin Moulder - Left Hand Thread	£90.00
遗传算法2B779	遗传算法1867	Pivot Shaft for Pendulum Feedroller Swing For Wadkin Moulder _ GENUINE PARTS	£88.50
遗传算法2B779	K0524200	Disc Spring ( 2 required ) price ea. For Wadkin Moulder	£7.00
遗传算法2B861	遗传算法1818	Screw for Wadkin XE	P.O.A	—
遗传算法2B861	遗传算法19261	Thumb Nut M12	£28.00
遗传算法2B861	遗传算法3849	Spacer For Adjusting Screw	P.O.A	—
遗传算法2B861	K0528207	Collar for Wadkin Machinery	£24.00
遗传算法2B861	K0530262	12mm Threaded Locking Handle (Patt No 14)	£14.75
遗传算法2B861	K3053211	Dome Nut M12	P.O.A	—
遗传算法2B861	K3061243	Clevis Pin & Locknut	£24.00
遗传算法2B861	K3062271	Tension Pin 12mm Dia. X 26mm Long	P.O.A	—
GEMB25	GEM3334	Wadkin Flange Mounted Feedroll Spacer 20mm Wide With Drive Peg	£62.50
XDB001	遗传算法20929	Top Beam Model 6	P.O.A	—
XDB003	遗传算法21002	Top Beam Model 5	P.O.A	—
XDB004	XK1406	Wormbox Breather Extension (60m m/c only)	P.O.A	—

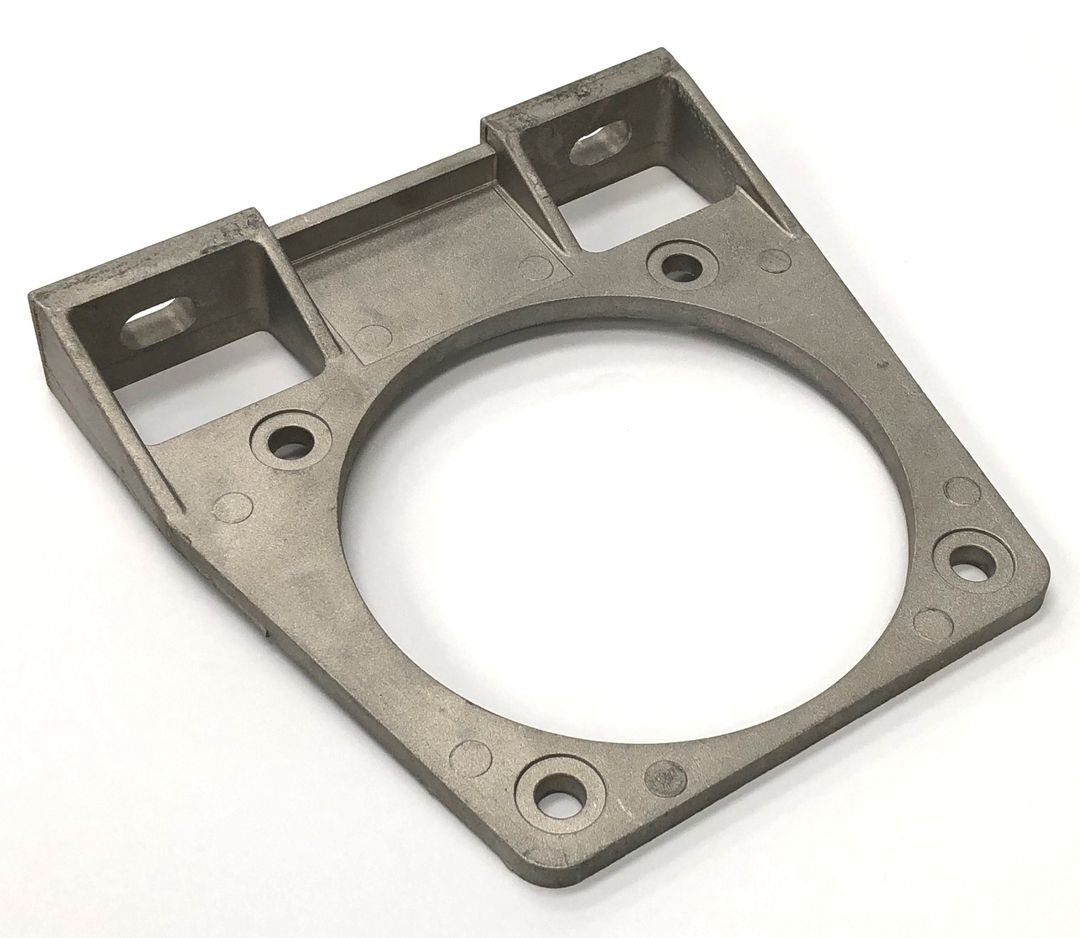

XJB001	遗传算法8964	Mounting Bracket For Wormbox	P.O.A	—
XJB001	K0525211	Hexagon Socket Capscrew M10 x 35mm Long for Wadkin WT Double Ender	£0.50
XJB001	K0525531	M10 x 30mm Hexagon Head Screw for Wadkin GC300	P.O.A	—
XJB001	K0528104	Plain washer M10 for Wadkin machine	£0.12
XJB004	遗传算法8928	Wormbox Side Mounting Plate	P.O.A	—
XJB004	K0525514	Hex hd screw M8 X 12mm for Wadkin Machinery	£0.95
XJB004	K0528103	Washer M8 - Price Each	£0.25
XJB004	K0528154	Spring Washer M8 for Wadkin WT Double Ender	£0.95
XJB005	遗传算法8925	Cover For Bedroll Belt Drive On Wadkin Moulders	£179.00
XJB005	遗传算法8926	Belt Drive Cover For Wadkin Moulder Feed	£57.00
XJB005	K0525422	Pan Head Screw M6 x 10mm Long	P.O.A	—
XJB005	K0526215	Stud M6 x 80mm Long	P.O.A	—
XJB005	K0527101	Hexagon nut M6 on Wadkin machines	£0.20
XJB005	K0527151	Self Locking Nut M6 Price Each	£0.50
XJB005	K0528102	Washer M6	£0.25
XJB015	遗传算法8961	Gearbox Output Shaft For Wadkin Moulders	£139.00
XJB015	K0523192	Key 8mm X 7mm X 80mm ( Traverse Screw Drive) for WT Double Ender	P.O.A	—
XJB015	K3010162	Circlip for Wadkin Visage	£1.50
XJB018	遗传算法8990	Half Coupling For Bedroll Drive (HT6/60 only)	£439.00
XJB018	K0523147	Parallel Key 14mm x 9mm x 40mm	P.O.A	—
XJB018	K0526114	Hexagon Socket Screw Cup Point M6 x 10mm Long On Wadkin Moulders	£0.95
XJB023	K3078688	Bedroll Driving Belt	£53.00
XJB023	K3078689	Bedroll Driving Pulley	£123.00
XJB024	K3078690	Taperlock Bush 19 Bore	£39.00
XJB026	K3078340	Taperlock Bush 48 Bore	£39.00

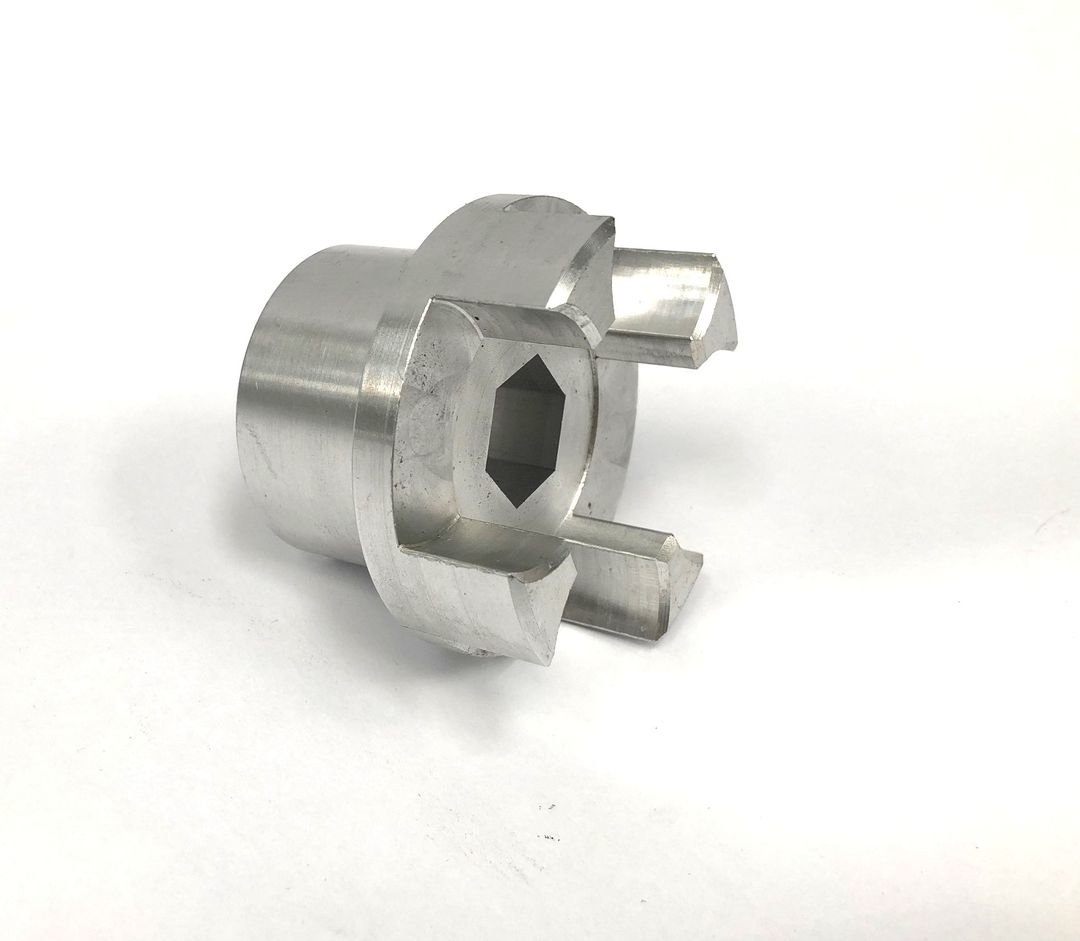

XJB033	遗传算法6801	Coupling Segment 19mm A/F Hex Bore for Weinig & Wadkin Moulders (price each)	£105.00
XJB033	K0526115	M6 x 12mm Long Hexagon Socket Grubscrew for Wadkin XE	£0.50

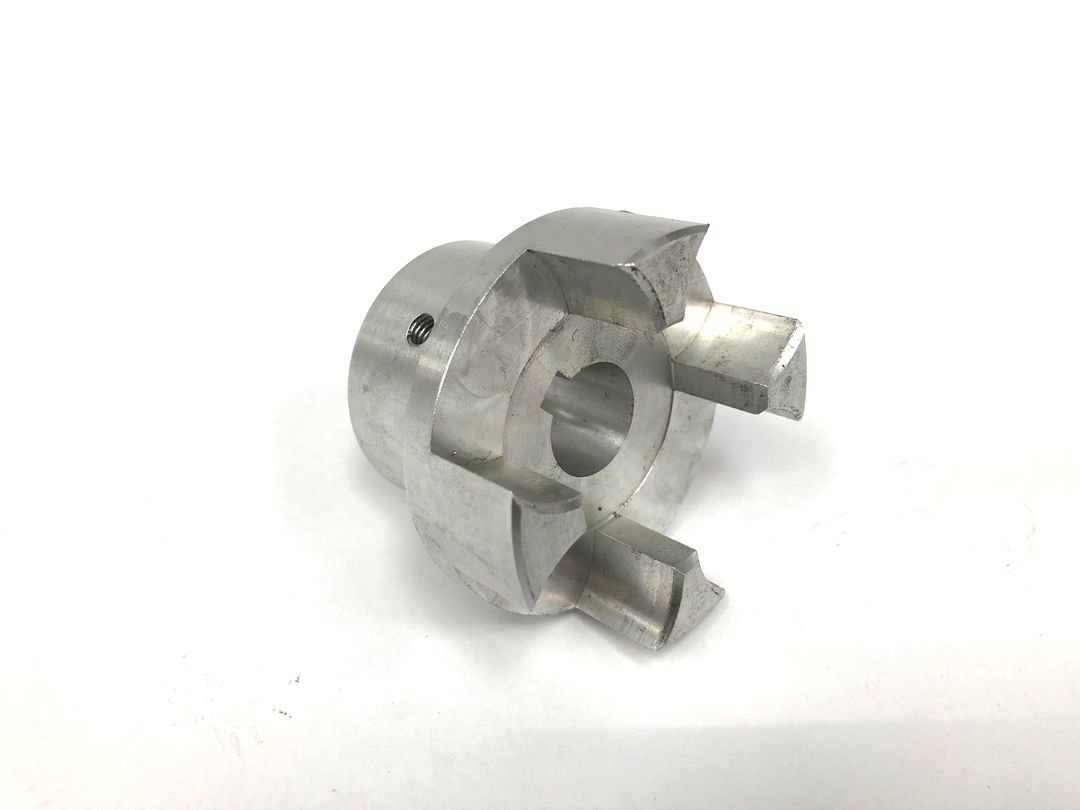

XJB034	遗传算法7001	Coupling Segment 19mm Keyway Bore for Weinig & Wadkin Moulders (price each)	£93.00

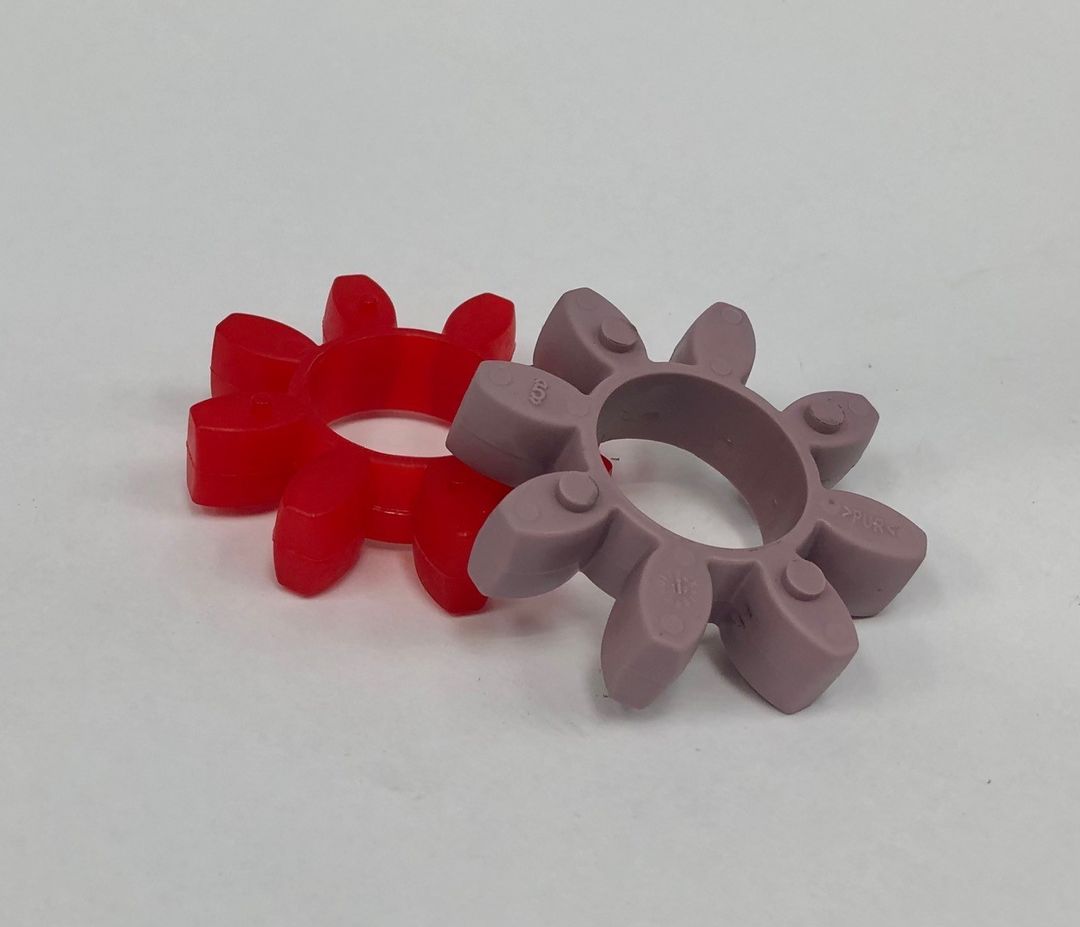

XJB035	K3009899	Spider Coupling For Wadkin Weinig Moulders (not shown) Placed Between Couplings -was red now purple Price Each	£31.00
XJB049	遗传算法2713	Cover For Bedroll Wormbox	P.O.A	—
XJB049	K0525505	M6 x 30mm Long Hexagon Head Setscrew for Wadkin XE	P.O.A	—
XJB068	遗传算法1925	Mounting Bracket For Single Swing	£487.00
XJB068	K0525210	Hexagon Socket Capscrew M10 X 30mm Long for Wadkin Machines	£0.95
XJB068	K0526126	M8 x 12mm Long Grub Screw for Wadkin GC300	P.O.A	—
XJB070	遗传算法2648	Gearbox Coupling	£249.00
XJB07O	K0523143	Key 6 x 6 x 40mm long	P.O.A	—
XJB101	遗传算法3213	Spacer 15mm long For Wadkin Moulder	£40.00

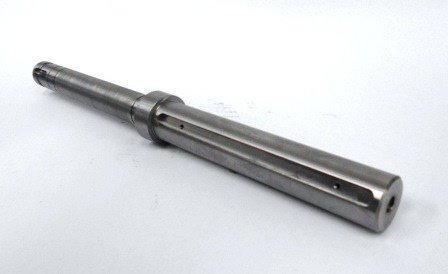

XJB112	遗传算法3601	Feedroll Shaft For Wadkin Moulder	£315.25
XJB112	遗传算法3603	Key For Wadkin Moulder	£9.50
XJB112	遗传算法720	C' Washer Eyebolt For Wadkin Moulder	£39.50
XJB112	K0523112	Parallel Key 8mm x 7mm x 14mm Long On Wadkin Moulder	£1.50
XJB112	K0525310	Hex.Skt.C/sunk Screw M4 x 12mm long	£0.95
XJB112	K0525543	Hexagon socket setscrew M12 x 25mm long On Wadkin machines	P.O.A	—

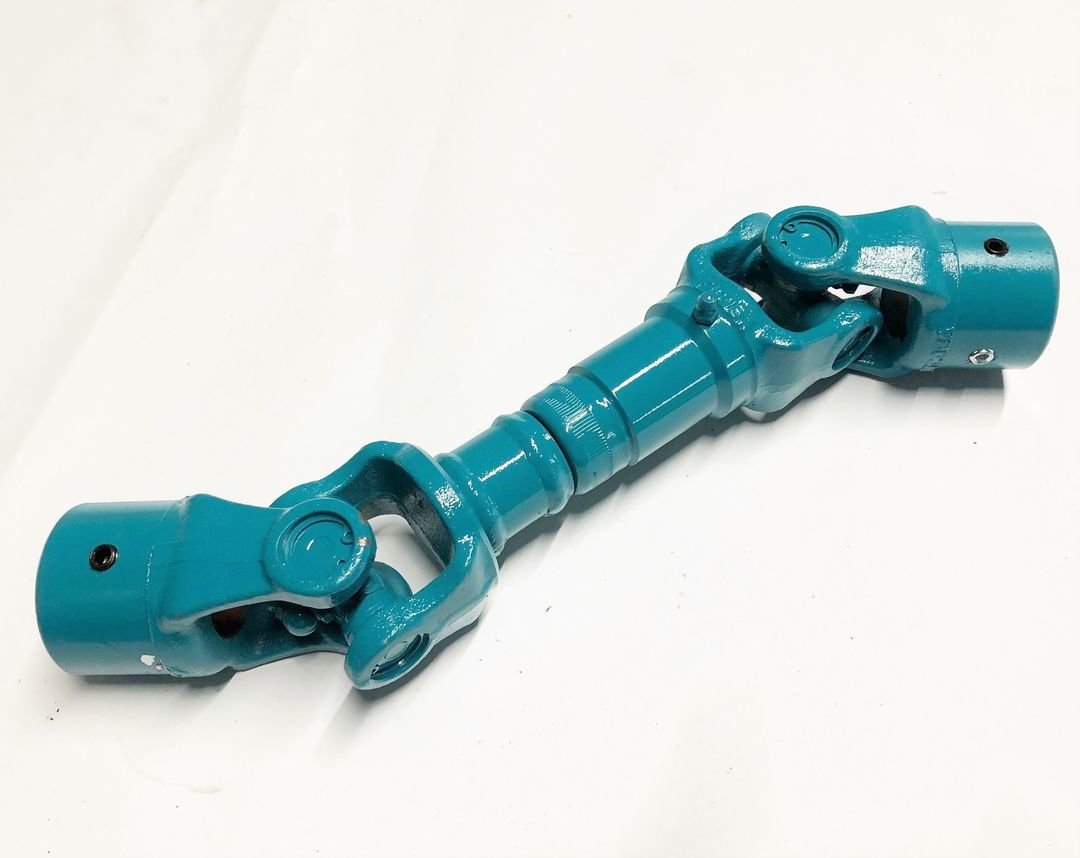

XJB144	遗传算法3841	Telescopic Drive Shaft for Bottom Feed Roll for Wadkin Moulders 345mm Long	£322.50
XJB144	K0526124	Hex.Skt.Grubscrew M8 x 8mm long -cone point	P.O.A	—

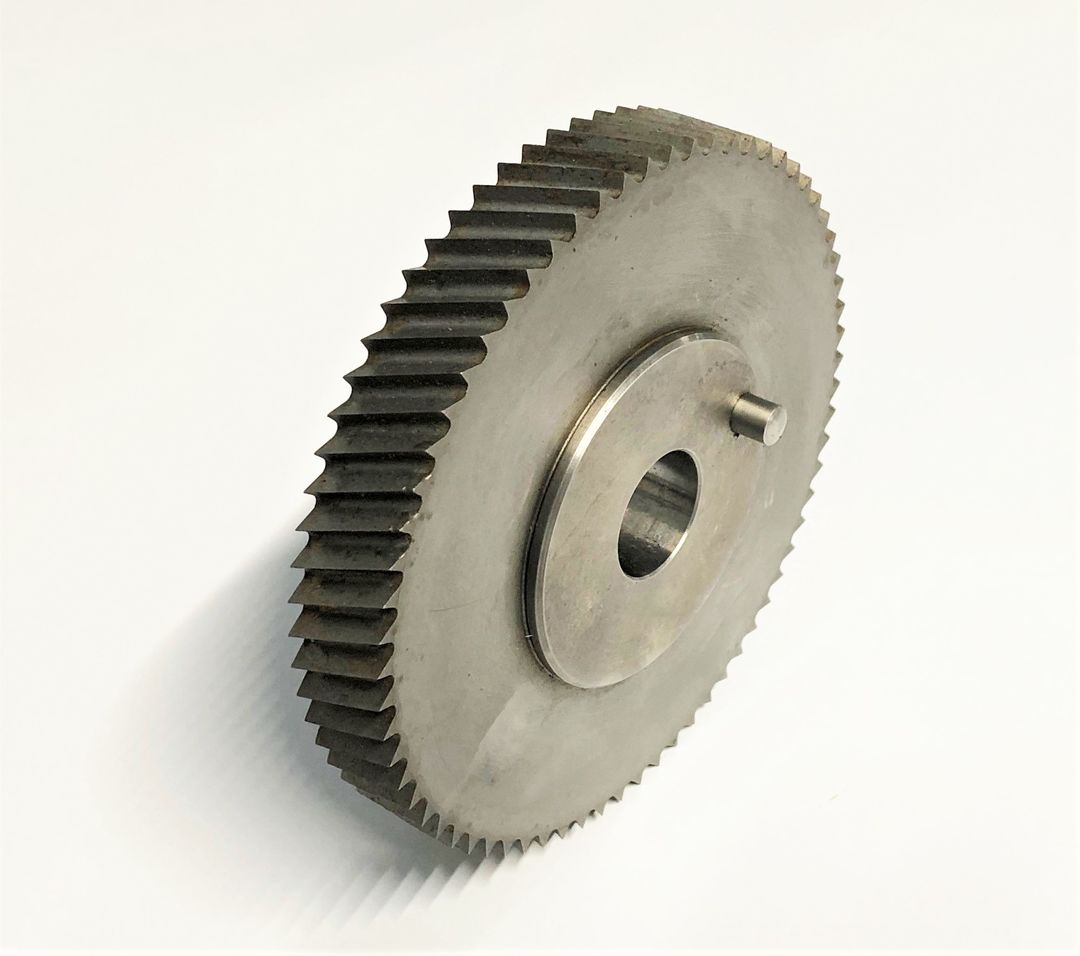

XJB174	GA4561	50mm wide saw tooth feed roller, with 35mm k/w bore (price each)	Was £95.00 £40.00

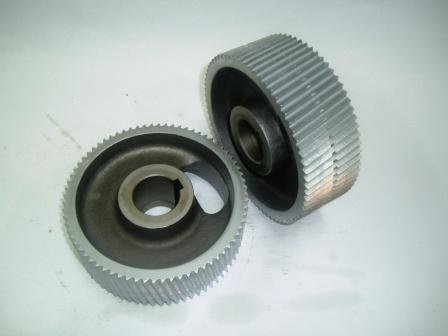

XJB175	GA4562	20mm Wide Steel Toothed Feedroller For Wadkin & Weinig (25mm Bore + Peg)	£90.00
XJB175	K3062279	Tappex Pin 8mm Dia. X 16mm Long	£4.00
XJB176	遗传算法4563	10mm Wide Steel Toothed Feedroller For Wadkin & Weinig (25mm Bore + Peg)	£90.00
XJB220	遗传算法3942	Stud For Feedroll Swing Stop	£15.00
XJB220	K0527147	Self Locking Nut M12	£0.49
XJB273	K3009470	Tolerance Ring For Wadkin Moulder	£20.80
XJB300	遗传算法18421	Coupling For Infeed & Outfeed Bedroll Drive	£298.00
XJB334	遗传算法19080	Wormgear Unit 7.5 : 1, Male/Male	£540.00
XJB335	遗传算法19081	Wormgear Unit 7.5 : 1, Male/Female	£540.00
XJB335	XK1397	Replacement Cast Feet For Wadkin BW63 Gearboxes XK1397 (Price Each)	£57.50
XJB336	遗传算法19085	WADKIN Male/Male Gearbox # GA19085 For Moulder FEEDWORKS - Genuine UK WADKIN Machine Parts	£548.73
XJB337	遗传算法19084	WADKIN Male/Female Gearbox # GA19084 For Moulder FEEDWORKS - Genuine UK WADKIN Machine Parts	£548.73
XKB047	XK1402	Cylinder Anchor Bracket LH	£47.75
XKB048	XK1401	Cylinder Anchor Bracket RH	£47.75
XKB048	K0525529	Hex.Head Screw M10 x 20mm long	P.O.A	—
