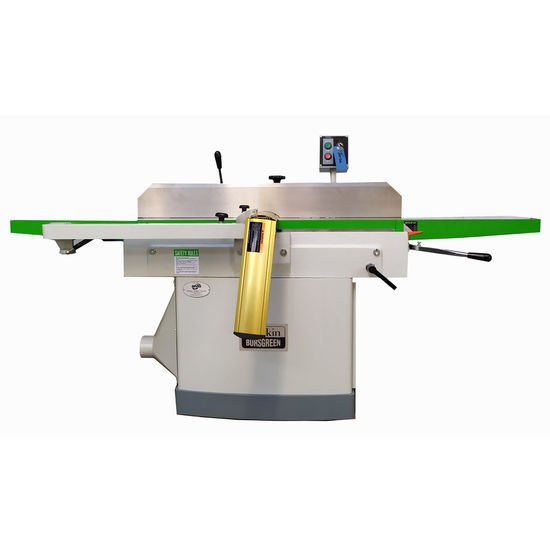

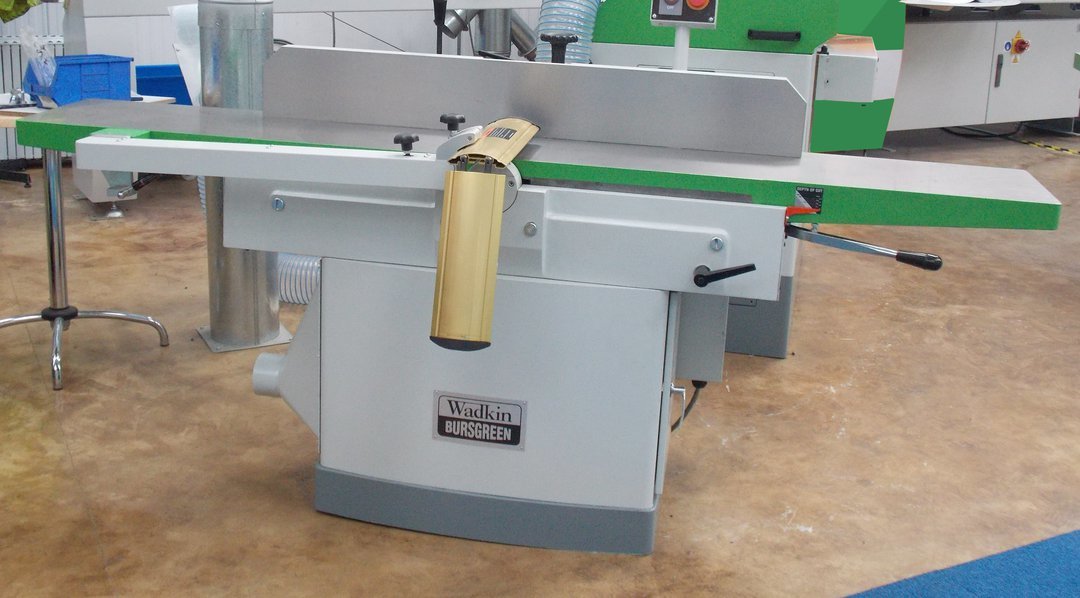

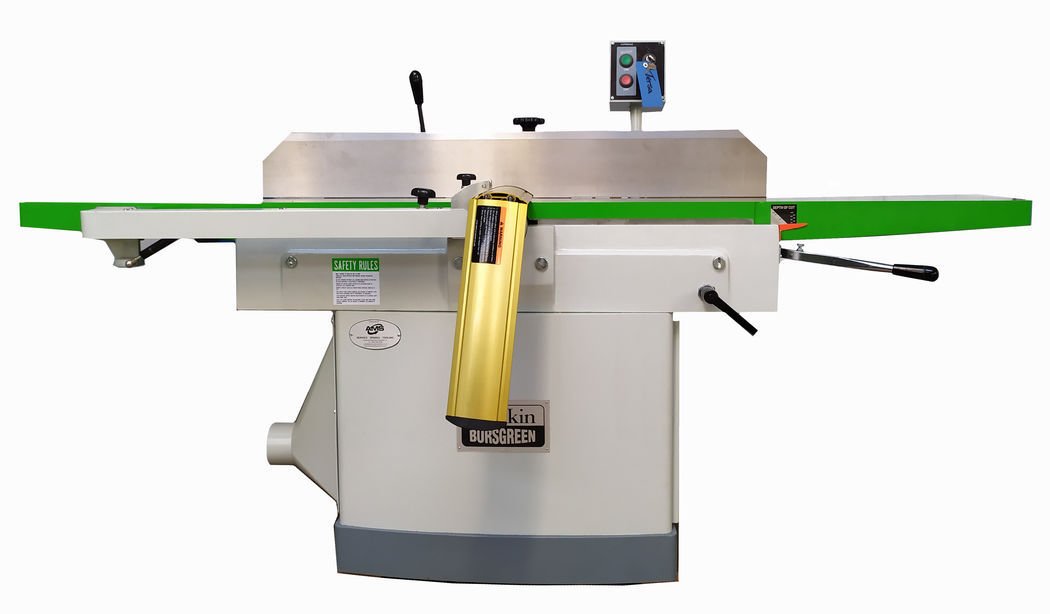

Wadkin Bursgreen WB S410 HD Surface Planer (Tersa)

Wadkin Bursgreen WB S410 HD Surface Planer (Tersa)
Wadkin Bursgreen WB S410 HD Surface Planer (Tersa) Wadkin Bursgreen WB S410 HD Surface Planer (Tersa) Wadkin Bursgreen WB S410 HD Surface Planer (Tersa)

Code: J-168L

  • 2450 x 500 mm (L x W)
  • Cast iron tables and made from heavy-duty steel for vibration-free face and edge joining operations.
  • Centralised control panel with the cutter head power switch, and emergency stop and the power disconnect.
  • Proven parallelogram table design allows travel with the same curve as the cutting sphere.
  • Quick set-ups for the infeed and outfeed fences by the use of the vertical adjustment levers.
  • The fold-away bridge guard allows the operator easy movement around the machine for faster end results.
£6,995.00 ex. VAT
£8,394.00inc. VAT

In Stockand available for immediate delivery.

Not what you were looking for?
We have new machinery and equipment arriving weekly; feel free tocontact ustoday to discuss our latest stock!


Wadkin Bursgreen WB S410 HD Surface Planer (Tersa)

The Wadkin Bursgreen S410 (Tersa block)surface planeris perfect for joinery, furniture, shopfitting and general woodworking workshops. With a 410mm working width and an overalltable lengthof 2438mm is perfect for straighteningDoor, Window and furniture components. The Tersa 4 knife block disposable knife system is an industry standard allowing for very quick tooling changes.
With apowerful 7.5hp motoryou can process large sectionhardwoods and softwoodswith ease. The stop / start buttons are handily placed above the machine table for easy access.

Technical Data

Technical Data

Code J-168L
Weight 0.55 kg
Brand Wadkin Bursgreen
Type Surface Planer
Condition New
Max. width of cut 406.4mm (16”)
Max. depth of cut 19mm (3/4”)
Table width 406.4mm (16”)
表的长度 2438mm (96”)
Height of table from floor 800mm (31½”)
Fence size (L x H) 1194 x 140mm (47 x 5½“)
Fence tilt 45o
Fence positive stops 44, 90 & 135
Cutter head speed 5000rpm
Number of knives 4
Cutter head diameter 100mm
切圆 140mm
槽口 19mm (3/4”)
Overall dimension 2464 x 1016 x 940 mm (97 x 40 x 37”)
Net weight 450 kg (990 lbs)
Gross weight 550 kg (1210 lbs)
